| A7 Full

A7 / Full Suspension Commuter eBike

$1,799.00

Add to wishlist
Add to wishlist
Category:

Geometry

| A7 Geometry
Recommended Height: 5’3″~6’1″
  • A – total length
    75.0
  • C – handlebar length
    26.7
  • E – wheel diameter
    28.1
  • G – maximum seat height
    25.1
  • I – frame stack
    25.1
  • K – effective top tube length
    23.0
  • M – head angle
    68°
  • B – handlebar height
    0° 44.6″ / 60° 45.8″
  • D – wheelbase
    47.5
  • F – minimum seat height
    22.6
  • H – chain stay length
    19.2
  • J – frame reach
    19.2
  • L – head tube length
    5.3
  • N – standover height
    20.2

Specification

  • Frame
    6061 Aluminum horst-link frame
  • Fork
    Coil spring fork | compression/Rebound adjustable | 120mm travel | 15*110mm thru axle
  • Front wheel
    Rim: DM-350-27.5″*13G*36H A/V
    Spoke: 13G 263L stainless
    Hub: DM41SB-B15*13G*36H*110
  • Tires
    Kenda K1052 | KRANIUM 27.5*2.4″
  • Motor
    500w brushless gear motor
  • Throttle
    Thumb Throttle
  • Crankset
    Crank arm: forged alloy 170mm
    Chain ring: 44T, BCD104
  • Chain
    KMC Z8.3 EPT
  • Front brake
    Shimano MT200
  • Rotors
    Tektro TR180-24 F:180mm R:180mm
  • Headset
    GINEYEA A16E-1
  • Shock
    Coil spring fork
    compression rebound adjustable 120mm travel 15*110mm thru axle
  • Rear wheel
    Rim: MD242 26*87MM*36H*12G
    Spoke: 12G 224L stainless
    Hub: 48v 500w Himiway Hub Motor
  • Battery
    LG 48V 15Ah
  • Display
    LCD display
  • Sensors
    Torque sensor丨speed sensor丨brake sensor
  • Cassette
    8-speed freewheel
  • Groupset
    Shimano 8 speed
  • Rear brake
    Shimano MT200

Components

  • Stem
    90mm 0-50 Degree Adjustable Stem
  • Seatpost
    31.6mm, 180mm length
  • A7 pedal
    Alloy pedal
  • Kickstand
    Adjustable foot support
  • Handlebar
    31.8mm, 680mm width
  • Saddle
    Selle Royal A050UR0
  • Lights
    48V LED light 120 Lux

Others

  • Range
    50 miles
  • Charger
    54.6v 2.0 A smart charger
  • Weight
    72.7 lb.(with battery)
  • Controller
    48V 18A
  • Rider height
    5′3″ ~ 6′1″
  • Max. payload capacity
    330lb

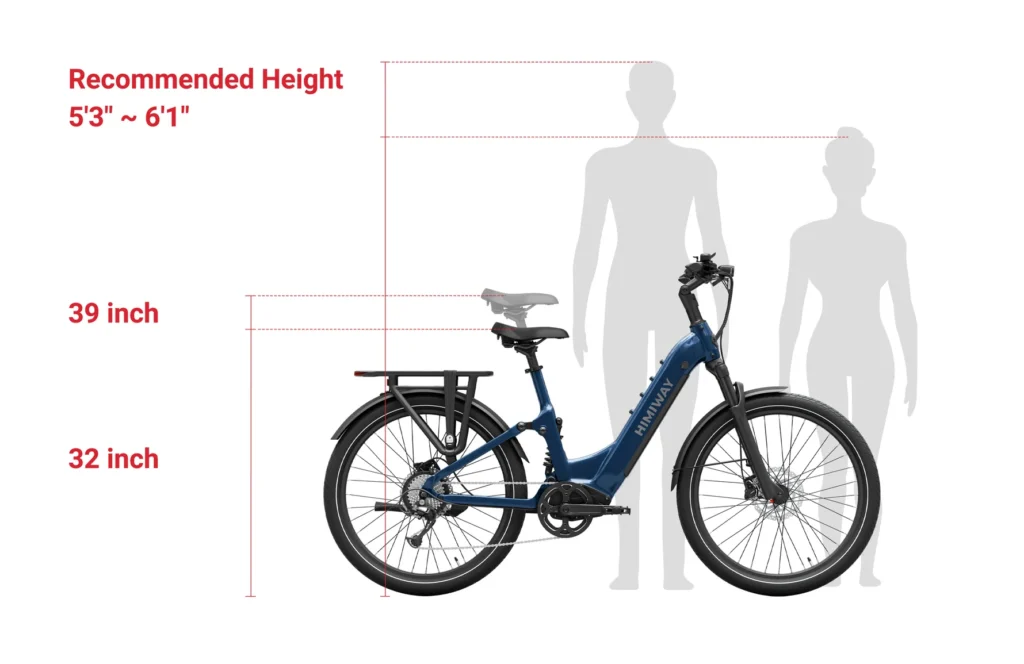

Recommended Height

| A7

Recommended Height: 5’3″~6’1″
Seat Height:32~39 inch

*Himiway has the right without notice to the consumer to substitute components of at least equal quality for advertised Himiway ebike components in the event of the unavailability of such advertised components.
