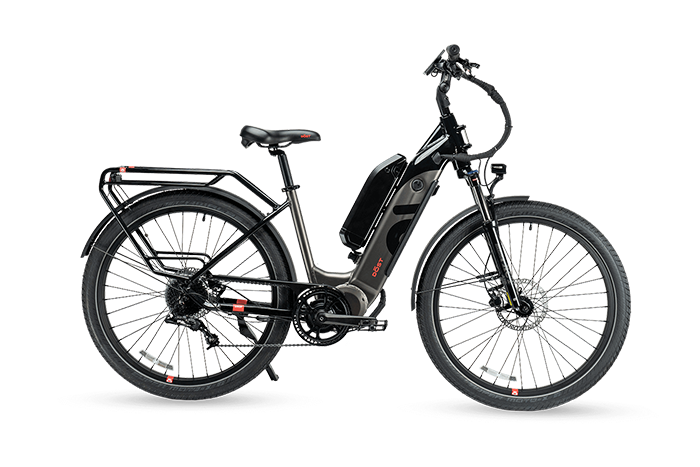

Drop Black
The DROP has a traditional drivetrain that uses the SRAM X5 derailleur to change gears and KMC roller chain to transmit power to the rear wheel. This tried and tested design boasts the lightest weight and highest energy efficiency of any design, translating into longer range for those looking to squeeze every last mile from their ebike.
A bike for all uses! The Magnum Pathfinder T is a versatile e-bike for commuting, recreation, exercise and more. The unisex step-through frame accommodates riders of all sizes and abilities. Includes Torque pedal assist for extra control.
See Electronics Specs
Motor
750W Bafang G340 (BBS02), mid drive motor, 120 nM of torqueCharger
48V, 2 Amp smart charger
Gear Sensor
Bafang SD01 mid-motor gear sensor, waterproof
Pedal Assist
Intelligent 5 level pedal assist
Throttle on demand
Battery
48V, 14 Ah (672 Wh) Samsung lithium ion frame battery 48V, 10.4 Ah (500 Wh) Optional additional lithium batteryUSB Ports
Display: 5V, .5 AmpDual battery balancer
DŌST 42-60V dual battery balancer, waterproofController
48V, 750W 25 ampLights
Front: LEZYNE SVTZO MINI 65 (Integrated) Rear: LEZYNE SVTZO E12 SUPER BRIGHT (Integrated)Display
DŌST 3.2″ multi-color, backlit LCD with USB charger (DCP-18)See Bike Components
Brake Calipers
DŌST Hydraulic dual-pistonBrake Rotors
DŌST 180mm front and rearDerailleur
SRAM X5Frame
6061 aluminumGrips
Velo locking, ergonomicKickstand
Adjustable heavy-duty aluminum with wide plastic footRims
Aluminum alloy, double wall, 36HSeat Post Clamp
Quick releaseStem
Ergotech, 60º angle adjustment, 100 mm length, 31.8 clamp ØBrake Levers
Cast alumimum comfort grip levers with motor cutoff switch and reach adustmentsChain
KMC Anti-Rust eBike chainFenders
Included, black plastic front and rear, full coverageFreewheel
SPAM 9 speed 11-34THandlebars
Custom formed aluminum, 31.8mm clamp, 680mm widthPedals
Wellgo B087 CrMo axle, forged aluminum platform with reflectors, standard 9/16″ x 20 TPI threadingSaddle
DŌST gel, wide saddle with lifting handleShifter
SRAM SL X5 Trigger ShiftersTires
Schwalbe Super Moto X 27.5″ x 2.4″, puncture resistant, sidewall reflectiveBrake Pad Material
Metal ceramic compoundCrank Set
DŌST Custom Narrow-Wide Chainring 46T with built in Chain Guide, Lasco Forged AlloyFork
DŌST Air Fork with hydraulic lockout and preload adjustment, 100mm travel, 9mm quick releaseGearing
SRAM 1 x 9 speedHeadset
Sealed bearing, 1-1/8″ straight steerer tubeRack
Rear: Integrated, 100 lbs carrying capacity, 16 mm tubing diameterSeat Post
300 mm x 31.6 mm, aluminum alloySpokes
13-gauge stainless steel, blackChainguard
DŌST chainguardSEE SIZING CHART

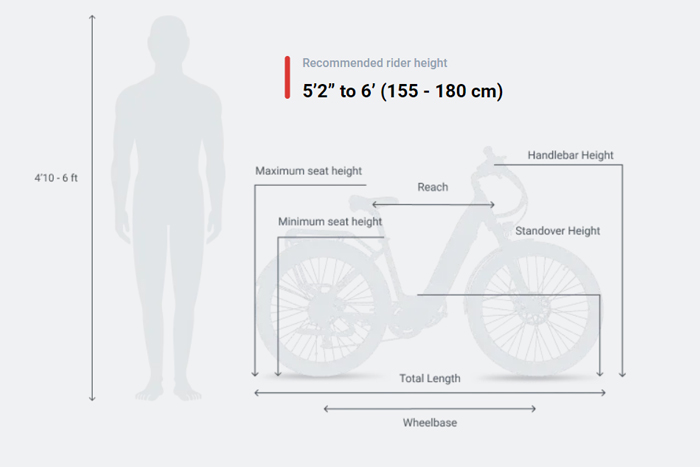

SIZING
Recommended Rider Heights:
5’2” to 6’ (155 – 180 cm)
Frame Size: 17.5″
Handlebar Height: 45″ – 47″
Handlebar Reach: 20″ – 24″
Seat Height: 31.5 – 40″
Stand Over Height: 17″
Total Length: 73″
Wheelbase: 44.5″
Max Tire Width: 2.4″
Payload Capacity: 300 lbs
Dropout Width Front: 100 mm
Dropout Width Rear: 143 mm
Bottom Bracket Shell Width: 73 mm
Seat Post Length: 340 mm
Top Tube Length (effective): N/A
Head Tube: 7″
Chain Stay: 17″
Handlebar Width: 660 mm
Crank Length: 170 mm
Seat Post Diameter: 31.6 mm
Bike Weight: 67.5 lbs
Rear Rack Capacity: 100 lbs
| Color | Cool White, Dark Grey |
|---|
