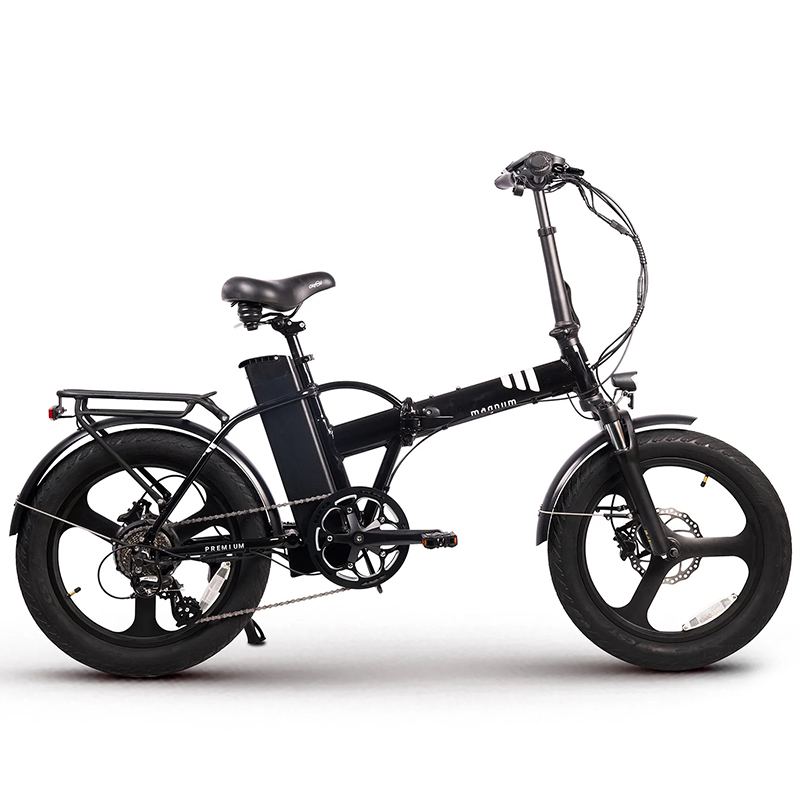

Premium 3 High Step

Name: Premium 3 High Step
SKU: 6498
Price: 2199.00 USD
Availability: InStock

$2,199.00

Add to wishlist

Category: Magnum

Description
Additional information
Reviews (0)

Electronic Details

Motor Brand : Bafang

Motor Type : Geared Rear Hub

Motor Nominal Output : 750 Watts

Motor Peak Output : 1000 Watts

Battery Brand : Samsung Cells

Battery Voltage : 48 Volts

Battery Ah : 20Ah

Battery Wh : 960Wh

Battery Chemistry : Li-NMC

Battery Charge Time (from empty) : 7.5 Hours

Minimum Range : 30 Miles (48 Kilometers)

Maximum Range : 50 miles (80 Kilometers)

Display Type : Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD

Display Readouts : Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time

Display Accessories :

Drive Mode : Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode

Top Speed : Up to 28 mph with Pedal Assist, 20 mph with Throttle

Lights : Integrated front and rear light controlled from the display / Brake Light activated when braking

Mechanical Details

Frame material : Aluminum Alloy

Frame size : 17.25” (44 cm)

Frame Type :

Fork Details : Suspension Fork with Lockout and Preload Adjust

Gearing details : Shimano 7-Speed

Shifter Details : Shimano 7-Speed

Crank : Aluminum Alloy, 52T, 170mm

Pedals : Wellgo

Stem : Promax Tool-Free Adjustable

Brakes : Clarks Hydraulic Disc Brakes

Grips : Brown Faux Leather

Saddle : Selle Royal Polygel

Tire Brand : Innova 26 x 2.4

Wheel size : 26”

Fenders : Front and Rear Included

Chain : KMC

Measurements

Seat Tube : 17.25” (44 cm)

Reach : 16.5” (42 cm)

Stand Over Height : 26.75” (68 cm)

Virtual Top Tube Length : 23.25” (59 cm)

Min Saddle Height : 23.25” (59 cm)

Max Saddle Height : 29” (74 cm)

Width : 27.25” (69 cm)

Wheelbase : 44” (112 cm)

Length : 71” (180 cm)

Total Weight : 62 lbs (28 kg)

Battery Weight : 9 lbs (4.1 kg)

Rider minimum height : 5’0”

What’s Included

Kickstand : Double-Leg

Bell : No

Charger : 48V/2A

Front Rack : Optional

Rear Rack : Included

Fenders : Front and Rear

Accessory Mounts : Front Carrier, Front and Rear Fender, Rear Rack

See Electronics Specs

Motor

750W Bafang G340 (BBS02), mid drive motor, 120 nM of torque

Charger

48V, 2 Amp smart charger

Dual battery balancer

DŌST 42-60V dual battery balancer, waterproof

Battery

48V, 14 Ah (672 Wh) Samsung lithium in frame battery
48V, 10.4 Ah (500 Wh) Optional additional lithium battery

USB Ports

Display: 5V, .5 Amp

Display

DŌST 3.2″ multi-color, backlit LCD with USB charger (DCP-18)

Controller

48V, 750W 25 amp

Lights

Front: LEZYNE SVTZO MINI 65 (Integrated)
Rear: LEZYNE SVTZO E12 SUPER BRIGHT (Integrated)

Pedal Assist

Intelligent 5 level pedal assist
Throttle on demand

See Bike Components

Brake Calipers

DŌST Hydraulic dual-piston

Brake Rotors

DŌST 180mm front and rear

Derailleur

SRAM X5

Transmission

Enviolo CVT SP heavy duty

Frame

6061 aluminum

Handlebars

Custom formed aluminum, 31.8mm clamp, 680mm width

Pedals

Wellgo B087 CrMo axle, forged aluminum platform with reflectors, standard 9/16″ x 20 TPI threading

Saddle

DŌST gel, wide saddle with lifting handle

Shifter

Enviolo Nuvinci Optimized Half-Grip Twist Shifter

Brake Levers

Cast alumimum comfort grip levers with motor cutoff switch and reach adustments

Belt

Gates Carbon Belt Drive CDX

Fenders

Included, black plastic front and rear, full coverage

Gearing

1x∞ Enviolo Automatic Continuously Variable Transmission 380º Gear Range

Headset

Sealed bearing, 1-1/8″ straight steerer tube

Rack

Rear: Integrated, 100 lbs carrying capacity, 16 mm tubing diameter

Seat Post

300 mm x 30.9 mm, aluminum alloy

Tires

Schwalbe Super Moto X 27.5″ x 2.4″, puncture resistant, sidewall reflective

Brake Pad Material

Metal ceramic compound

Crank Set

55 Tooth Gates Carbon Drive CDX Belt Chainring with DŌST Custom Chain guide, Lasco Alloy crank arms

Fork

DŌST Air Fork with hydraulic lockout and preload adjustment, 100mm travel, 9mm quick release

Grips

Velo locking, ergonomic

Kickstand

Adjustable heavy-duty aluminum with wide plastic foot

Rims

Aluminum alloy, double wall, 36H

Seat Post Clamp

Quick release

Chainguard

DŌST chainguard

Color	Black With Gunmetal Accents, Black With Metallic Blue Accents, Black With Silver Accents, White With Champagne Accents, White With Metallic Blue Accents, White With Silver Accents
